# Big Query Cataloguer

Connect a Big Query Cataloguer to Workplace AI to make the most of the data on your machines.

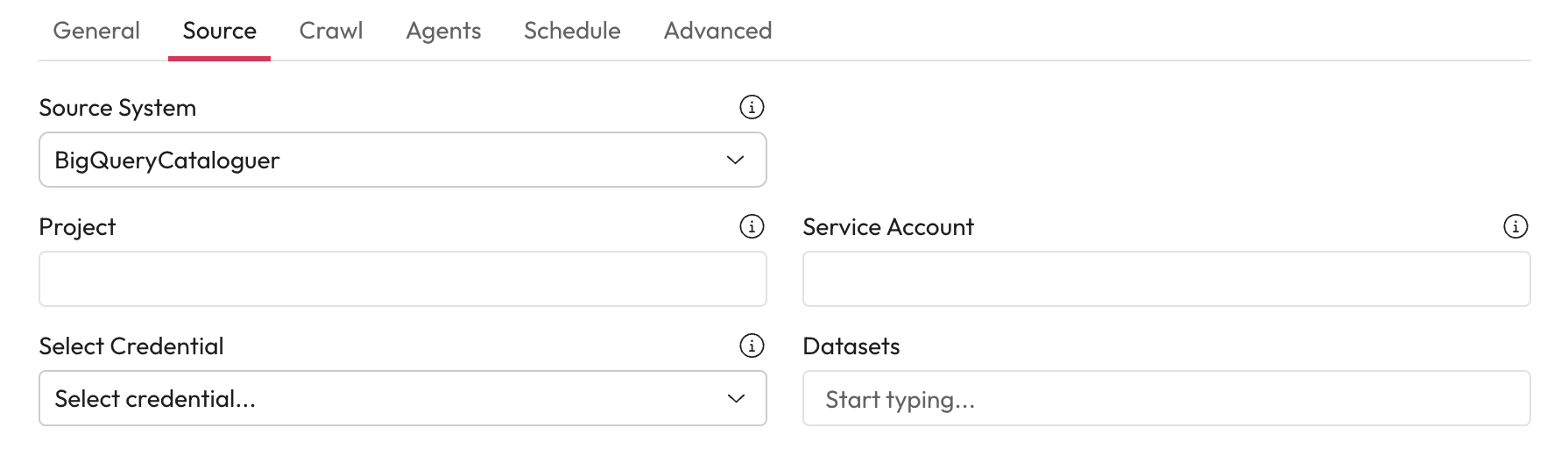

1. **Source System:** Select Big Query Cataloguer from the dropdown.

## Initial Configuration Steps

1. **Project:** Enter the Google Cloud project ID containing the BigQuery datasets.
2. **Service Account:** Enter the Google Cloud service account to use.
   * This is the client email in the JSON file generated when creating the service account.
   * This account must have the right access to the dataset, query tables, views, read metadata and permissions.
3. **Select Credential:** Select the private key to authenticate access from the dropdown.
   * This is the private\_key in the JSON file generated when creating the service account. This should match the file and include the \n.
   * *For support setting up credentials use* [*our guide on managing credentials.*](https://docs.aiimi.com/aiimi-insight-engine/control-hub/security/credentials)

<figure><img src="https://content.gitbook.com/content/iyzfmS8DQ2bAtaOk1MxQ/blobs/wX5WUYhTX5GuScCS6OaF/image.png" alt="" width="563"><figcaption></figcaption></figure>

***

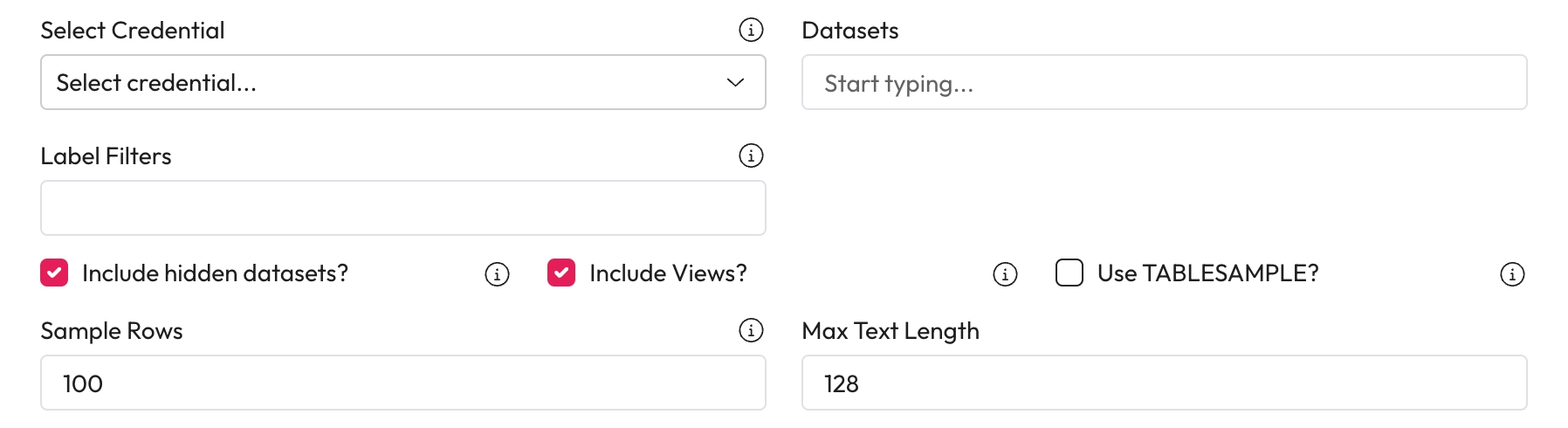

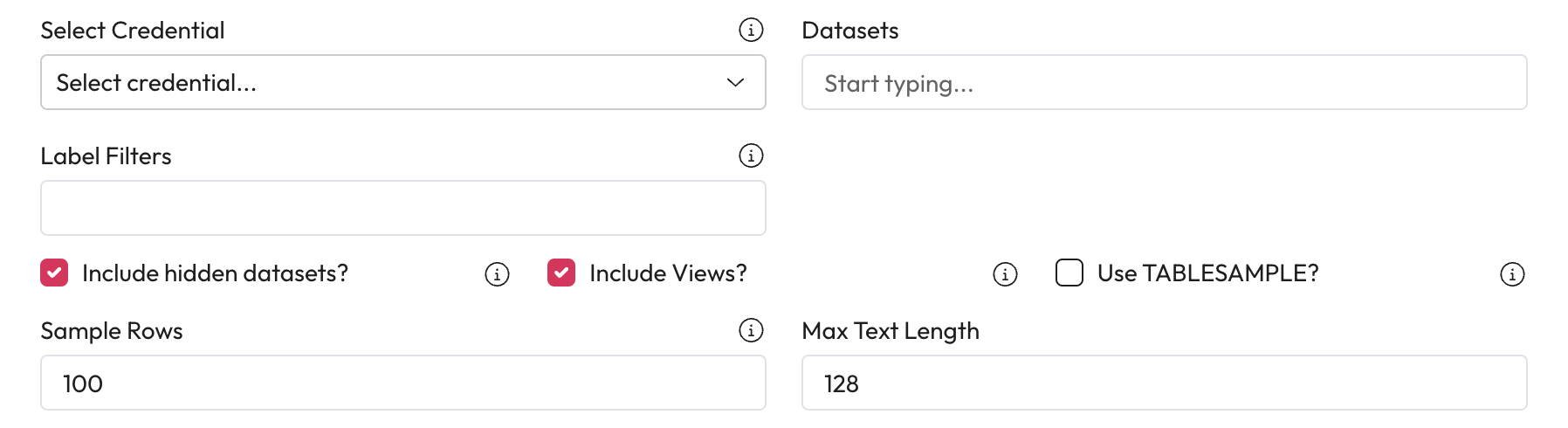

## Data Settings

1. **Datasets:** Enter the datasets to be included in this crawl.
2. **Label Filters:** Enter filters using Google Clouds syntax to filter your datasets.
   * [See Google Clouds documentation for syntax details. ](https://cloud.google.com/bigquery/docs/reference/rest/v2/datasets/list)
3. **Include Hidden Datasets:** Check this to include hidden datasets in this catalogue.
4. **Include Views:** Check this to include views and tables in this catalogue.
5. **Use Table Sample:** Check this to sample data from tables.&#x20;
   * This feature is currently Alpha, we recommend talking to your Aiimi contact for more information.
6. **Sample Rows:** Enter the number of sample rows to extract from each table.
   * If set to 0 no sample will be generated.
   * Existing samples will be preserved where possible.
7. **Max Text Length:** Enter the maximum number of characters that will be taken from a text column.

<figure><img src="https://content.gitbook.com/content/iyzfmS8DQ2bAtaOk1MxQ/blobs/luXDFPjArVkLqbyWhbKB/image.png" alt="" width="563"><figcaption></figcaption></figure>

***

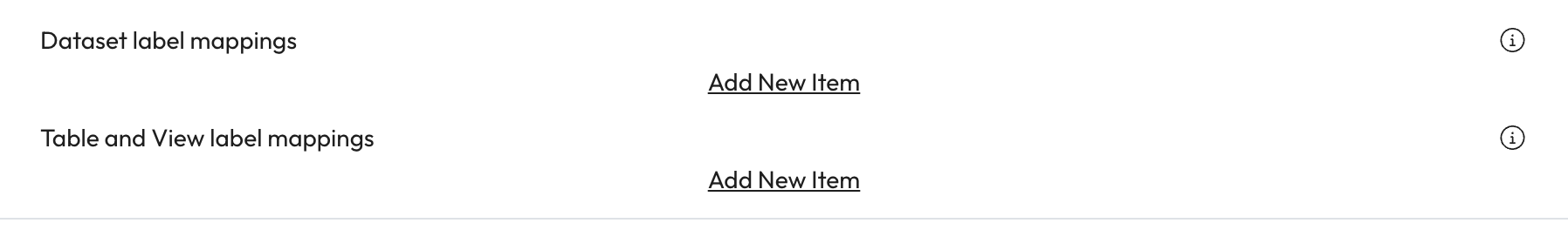

## Optional Mappings

### Dataset label mappings

Map your Workplace AI metadata fields to the BigQuery labels for datasets.

1. **Add New Item:** Select this to add a new dataset label mapping.
2. **Database Model Property:** Enter the database model property from Workplace AI in the left column.&#x20;
   * This is case sensitive
3. **BigQuery Label:** Enter the BigQuery label key name that you want to map in the right column.
   * This is case sensitive
4. **Save the Mapping:** Select the check to save this mapping.

### Table and View label mappings

Map your Workplace AI metadata fields to the BigQuery labels for tables and views.

1. **Add New Item:** Select this to add a new table and view label mapping.
2. **Database Model Property:** Enter the database model property from Workplace AI in the left column.&#x20;
   * This is case sensitive
3. **BigQuery Label:** Enter the BigQuery label key name that you want to map in the right column.
   * This is case sensitive
4. **Save the Mapping:** Select the check to save this mapping.

<figure><img src="https://content.gitbook.com/content/iyzfmS8DQ2bAtaOk1MxQ/blobs/fCvF6finc6m9sZdNeA0L/image.png" alt="" width="563"><figcaption></figcaption></figure>

***

## Completed the Source section&#x20;

1. Once you have completed this section, select Crawl. [Learn how to complete the source Crawl set up.](https://docs.aiimi.com/aiimi-insight-engine/control-hub/agents/configurations/source-configurations/source-crawl)
